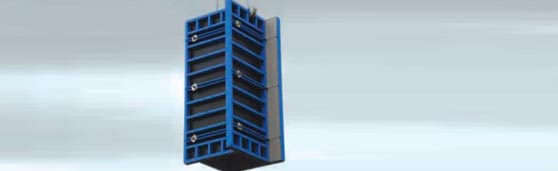

Vinci 80 is a Wall and Column Formwork system with high-grade steel framed panels incorporating the highest production standards using robotic and laser welding with our exclusive "Elephant Plywood" making Vinci 80 a first-rate choice. As the panel corners include solid steel pieces this enables the life of the panel to be prolonged against similar panel systems and also they provide extra stiffness with strengthened inserts for levering and lifting holes for handling. The panel heights are 330 cm, 300 cm, 270 cm, 180 cm, 150 cm and 120 cm while the panel widths are 30,45, 60,75,90,120 and 240 cm. All panels have 12 cm depth of special high-grade Austrian steel profile and can be connected to Vinci 70 panels. The steel frame powder coating provides longevity to the panel as well as allowing for easier cleaning whilst avoiding adhesiveness against concrete. The static calculations for formwork structure of Vinci 80 fulfill all requirements of GSV according to DIN 18202 TAB.3 Line 7 with a load bearing capacity of 80 KN/m2 and maximum 3 mm deflection.
